SKU: YEL211-203-2F-SKF

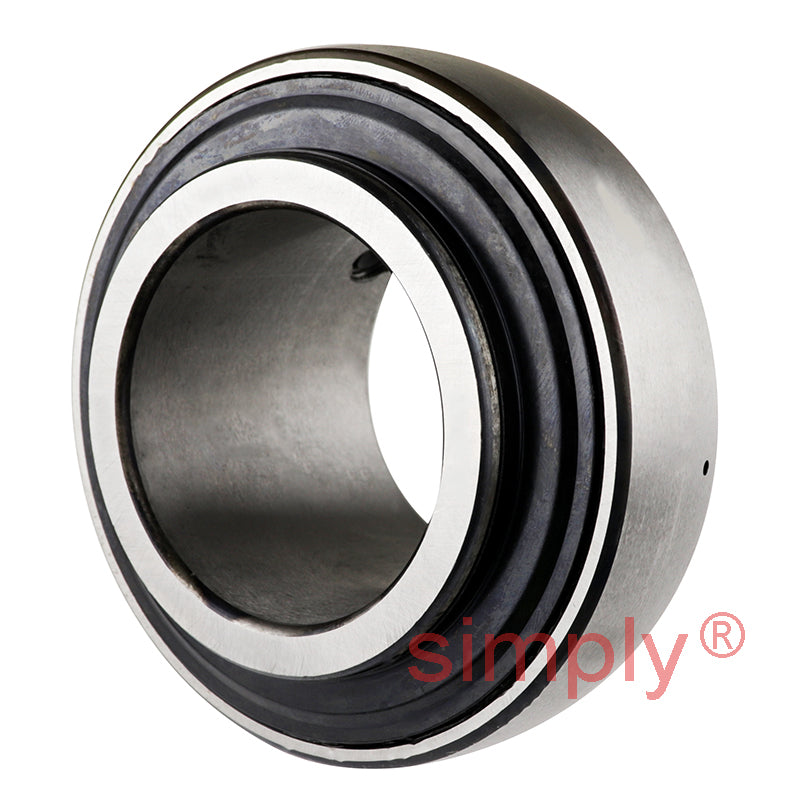

SKF YEL211-203-2F Eccentric Locking Collar Type Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter
SKF YEL211-203-2F Eccentric Locking Collar Type Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter
Regular price
CHF 98.00
ex VAT
Regular price
Sale price
CHF 98.00
ex VAT
In stock
Price Break
10+
CHF 77.39
20+
CHF 73.04
30+
CHF 72.17
40+
CHF 71.30
50+
CHF 70.43
75+
CHF 69.56
100+
CHF 65.21
200+
CHF 64.35
250+
CHF 63.48
500+
CHF 62.61
1000+
CHF 60.87
Description
Description
|

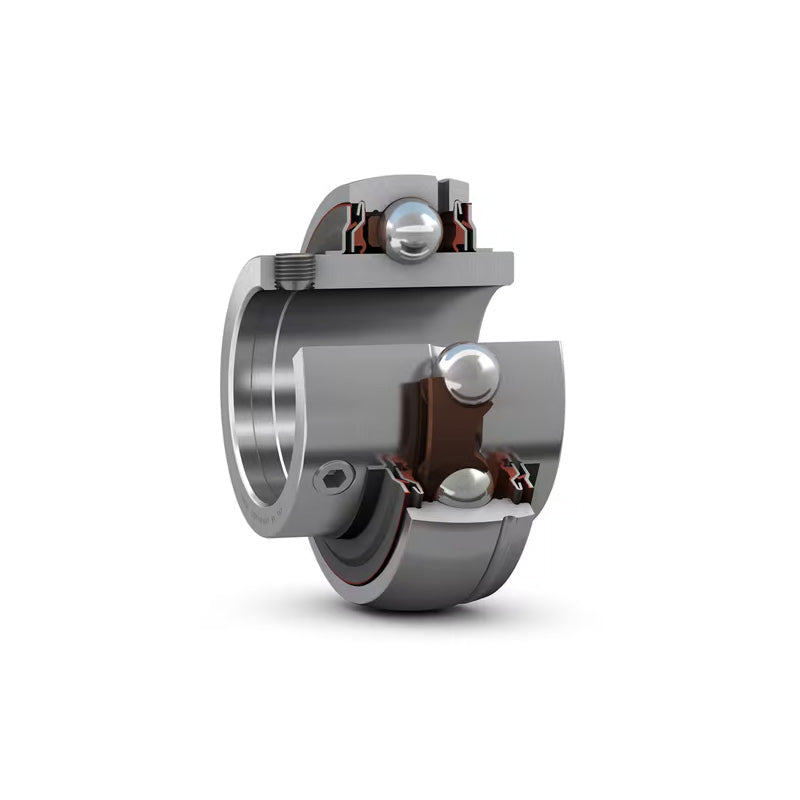

SKF YEL-2 Y-bearings with an Eccentric Locking Collar: Intended primarily for use in applications where the direction of rotation is constant. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. YEL 2 series bearings have an extended inner ring on both sides, which reduces the extent to which the inner ring can tilt on the shaft, which enables the bearing to run smoothly. The outer ring has two lubrication holes as standard. These bearings are fitted with the rugged standard integral seal. Plain sheet steel flingers are also provided if the bearing designation has a suffix of 2F, or rubberised sheet steel flingers (multiple seal) if the bearing designation has a suffix of 2RF/VL065. Benefits: Reduces inner ring tilting on shaft enabling the bearing to run smoothly, lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Style:
- YEL
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| D | 100mm |
| B1 | 72.4mm |
| C | 25mm |
| d1 | 69.2mm |
| d2 | 74.5mm |
| s1 | 43.6mm |
| r1r2 min | 2mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 2.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 2.3 kg |
