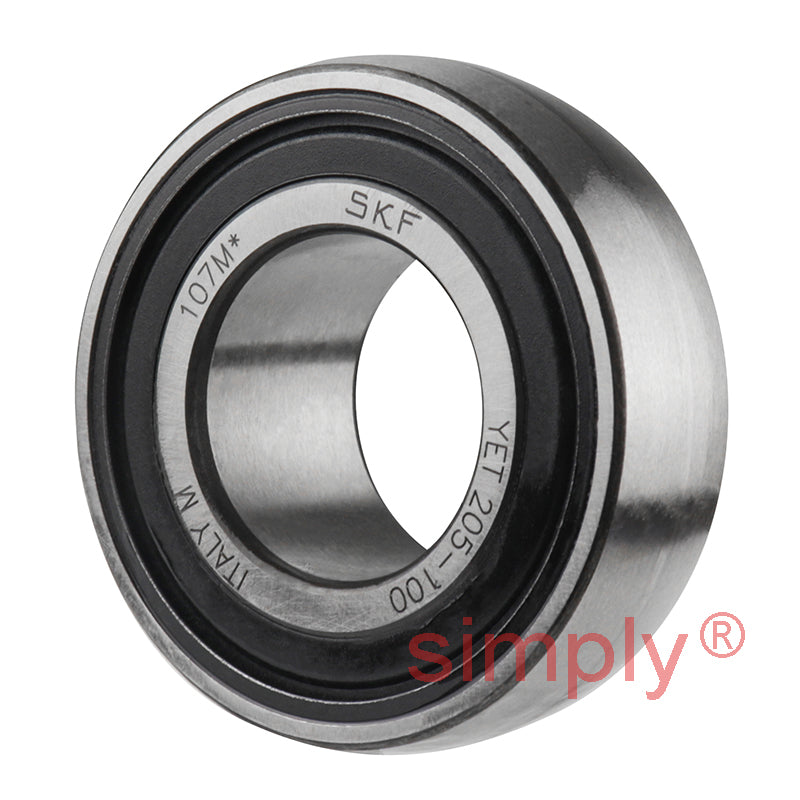

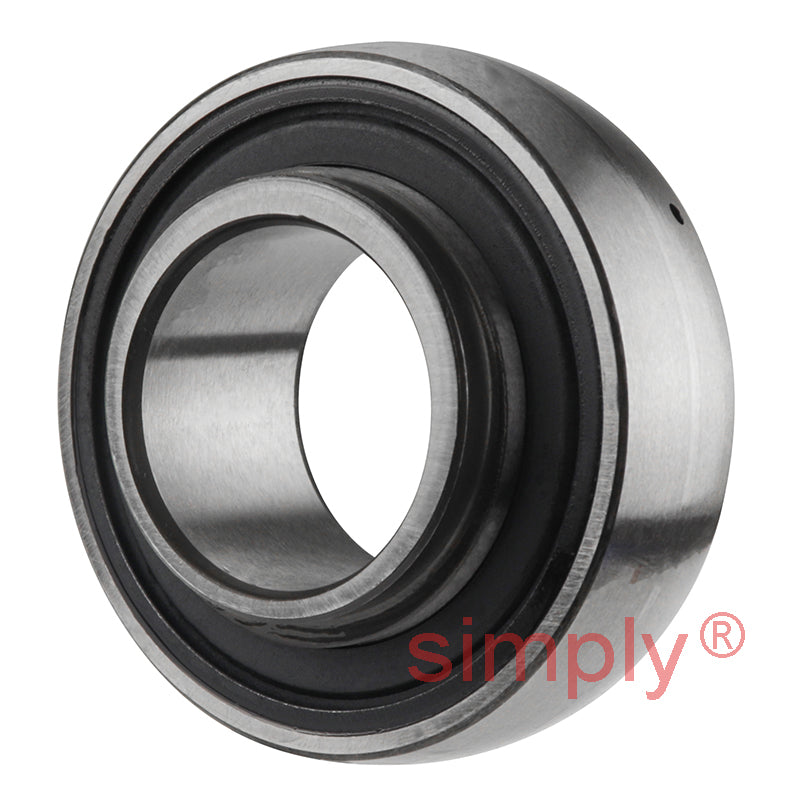

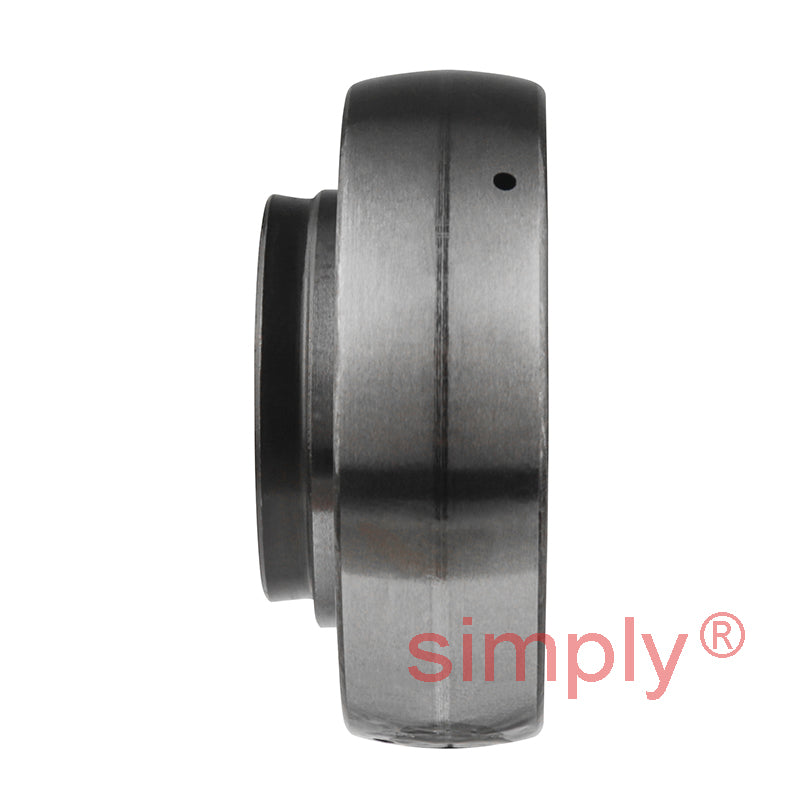

SKF YET205-100 Food Grade Grease Bearing Insert Grub Screw 1 inch 52mm Outside Diameter
SKF YET205-100 Food Grade Grease Bearing Insert Grub Screw 1 inch 52mm Outside Diameter
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
In stock
Price Break
10+
CHF 19.97
20+
CHF 18.85
30+
CHF 18.63
40+
CHF 18.40
50+
CHF 18.18
75+
CHF 17.95
100+
CHF 16.83
200+
CHF 16.61
250+
CHF 16.38
500+
CHF 16.16
1000+
CHF 15.71
Description
Description
|
SKF YET-2 Y-bearings with an Eccentric Locking Collar: Intended primarily for use in applications where the direction of rotation is constant. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. YET 2 series bearings have an extended inner ring on one side and are fitted with the rugged standard integral seal. The eccentric collar is zinc-coated for bearings with a metric bore and black oxidised for bearings with an imperial bore. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- YET
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B1 | 31mm |
| C | 15mm |
| d1 | 33.7mm |
| d2 | 37.4mm |
| s1 | 23.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.18 kg |
