SKU: YET209-112-SKF

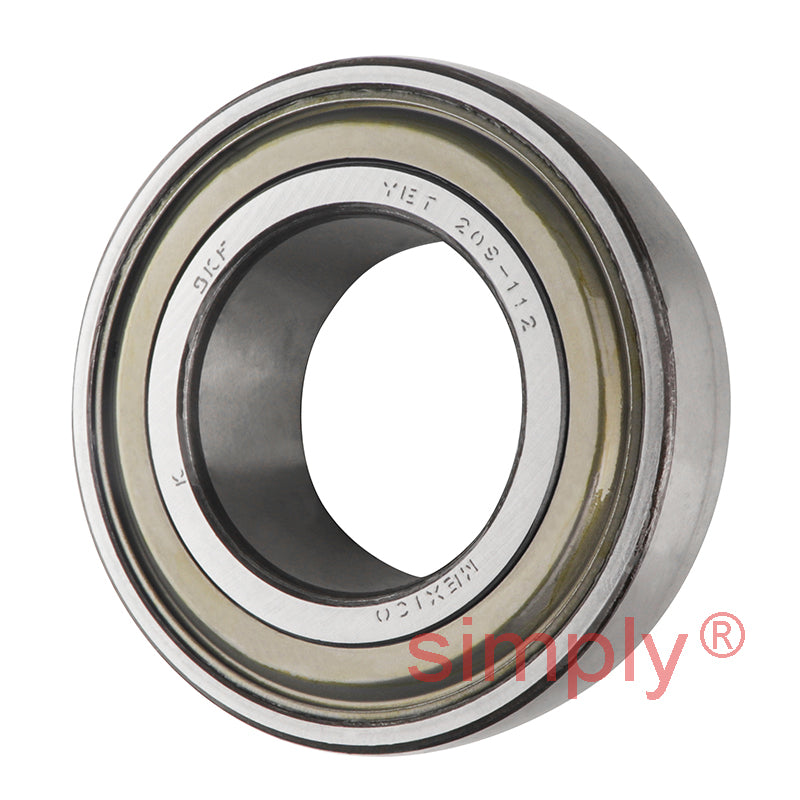

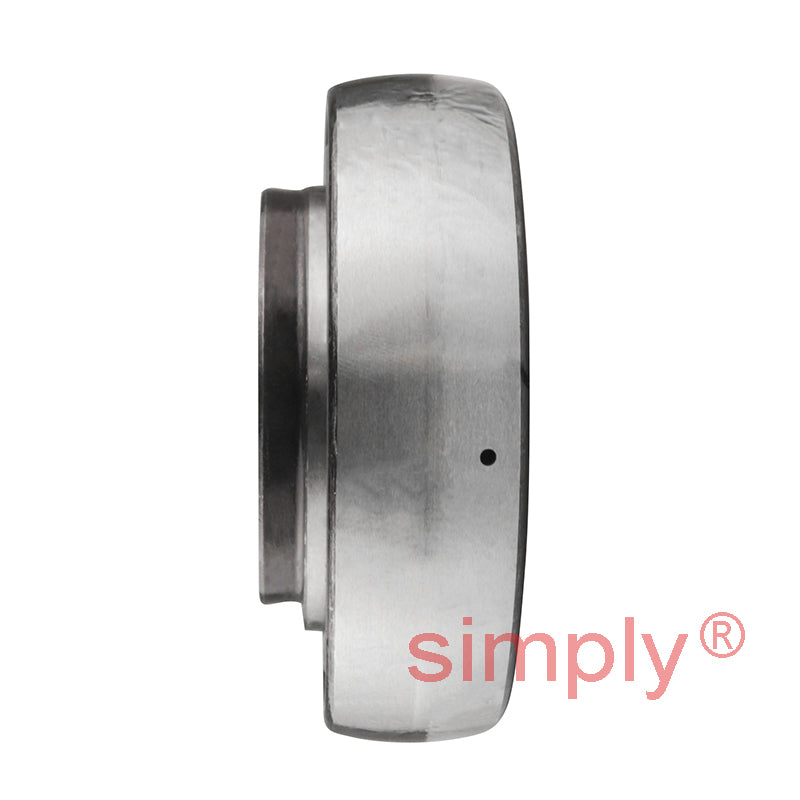

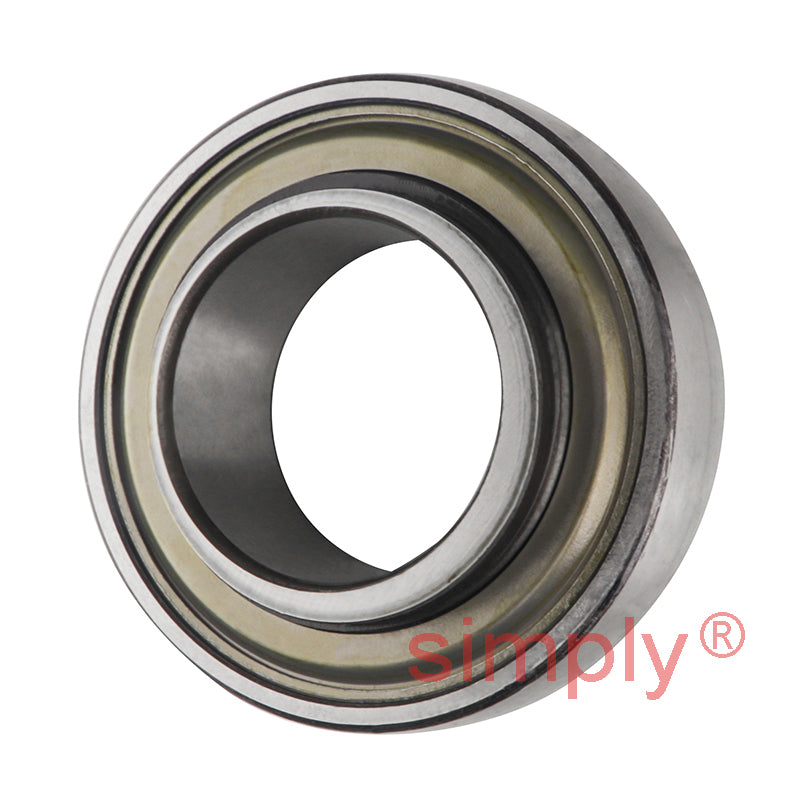

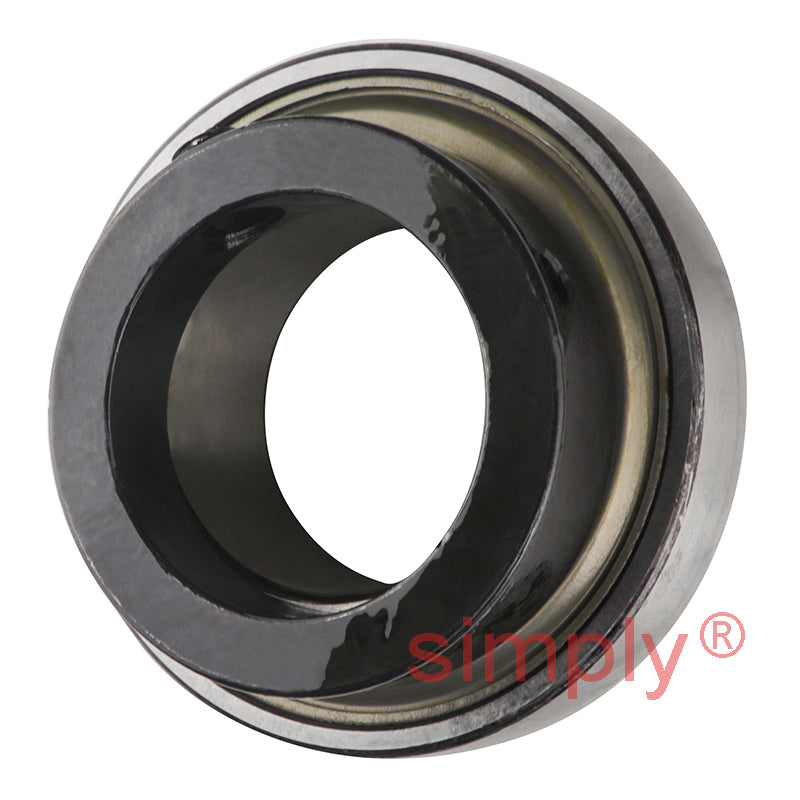

SKF YET209-112 Eccentric Locking Collar Type Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
SKF YET209-112 Eccentric Locking Collar Type Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
Regular price
CHF 63.00
ex VAT
Regular price
Sale price
CHF 63.00
ex VAT
In stock
Price Break
10+
CHF 49.55
20+
CHF 46.76
30+
CHF 46.21
40+
CHF 45.65
50+
CHF 45.09
75+
CHF 44.54
100+
CHF 41.75
200+
CHF 41.20
250+
CHF 40.64
500+
CHF 40.08
1000+
CHF 38.97
Description
Description
|

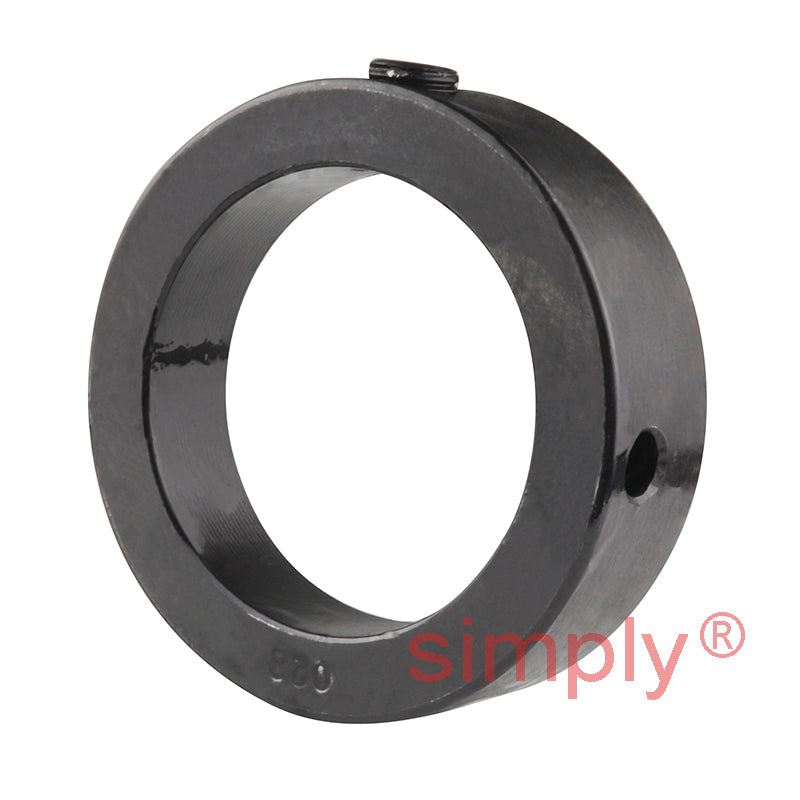

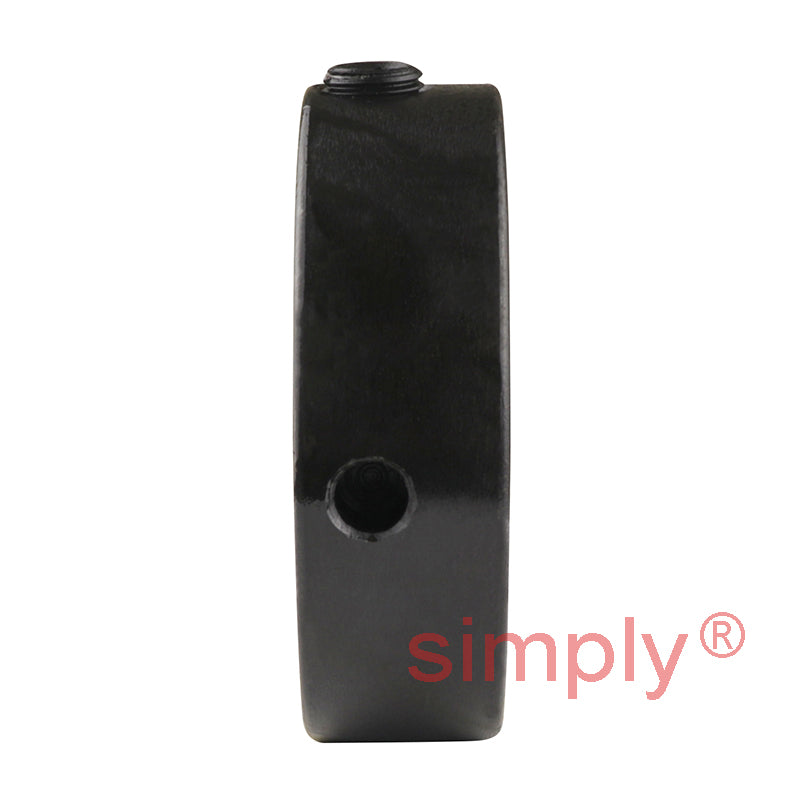

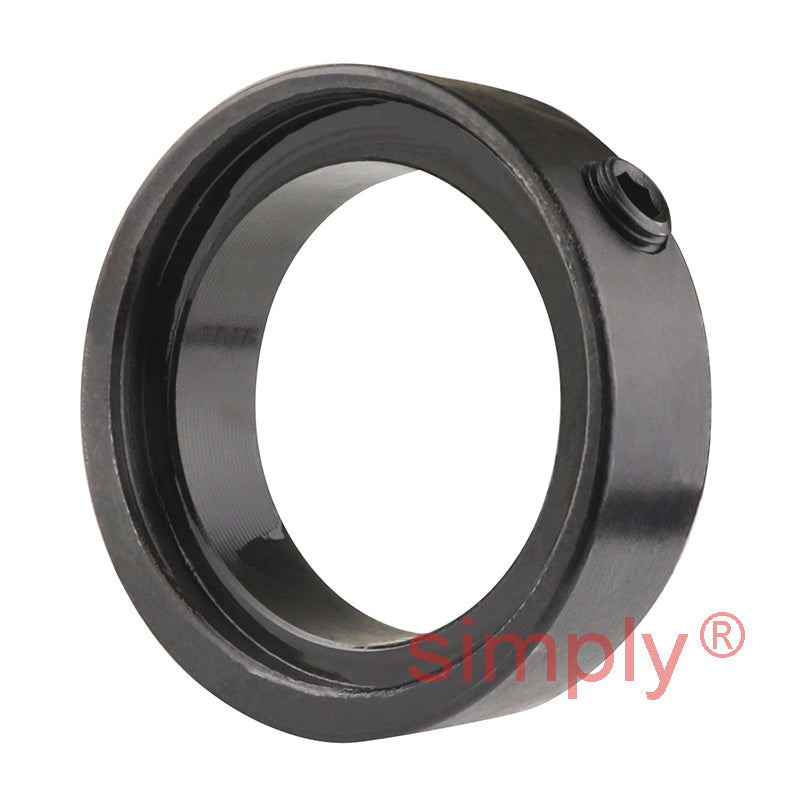

SKF YET-2 Y-bearings with an Eccentric Locking Collar: Intended primarily for use in applications where the direction of rotation is constant. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. YET 2 series bearings have an extended inner ring on one side and are fitted with the rugged standard integral seal. The eccentric collar is zinc-coated for bearings with a metric bore and black oxidised for bearings with an imperial bore. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- YET
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| B1 | 43.7mm |
| C | 22mm |
| d1 | 56.8mm |
| d2 | 62mm |
| s1 | 327mm |
| r1r2 min | 2mm |
| Static load Cr | 22.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.7 kg |
