SKU: YSA212-2FK/HS2312-SKF
SKF YSA212-2FK Tapered Bearing Insert 2-1/8 inch with HS2312 Adaptor Sleeve 110mm Outside Diameter - Allow 2-3 Days
SKF YSA212-2FK Tapered Bearing Insert 2-1/8 inch with HS2312 Adaptor Sleeve 110mm Outside Diameter - Allow 2-3 Days
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
10+
CHF 109.74
20+
CHF 105.31
30+
CHF 103.09
40+
CHF 99.77
50+
CHF 97.55
75+
CHF 92.01
100+
CHF 77.60
200+
CHF 0.00
250+
CHF 0.00
500+
CHF 0.00
1000+
CHF 0.00
Description
Description
|

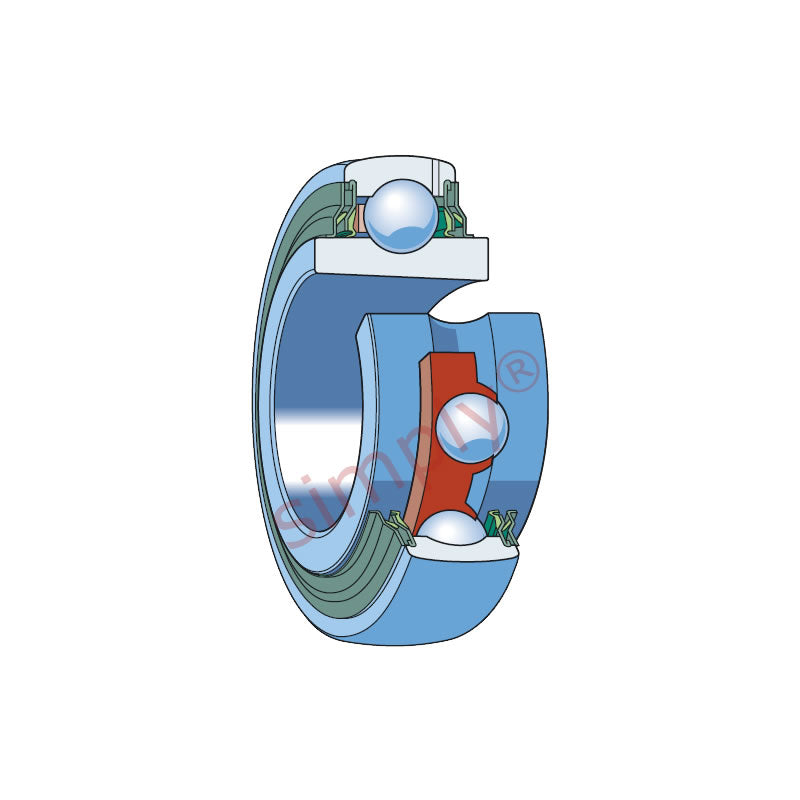

SKF YSA-2-2FK Y-bearings with a Tapered Bore: These bearings have a symmetrically extended inner ring on both sides and a tapered bore (taper 1:12) enabling them to be mounted on a standard adapter sleeve in the H-23 series. These bearings are equipped with the rugged standard integral seal, fitted with additional plain sheet steel flingers. The outer ring has two lubrication holes as standard. Mounting onto an adapter sleeve enables the bearings to opeate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 110mm
- Style:
- YSA
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| D | 110mm |
| B | 42.5mm |
| B1 | 62mm |
| C | 26mm |
| s1 | 34.3mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 1.4 kg |
| Included Sleeve | HS2312 |
