SKU: ZKLN30622RS2AP-INA

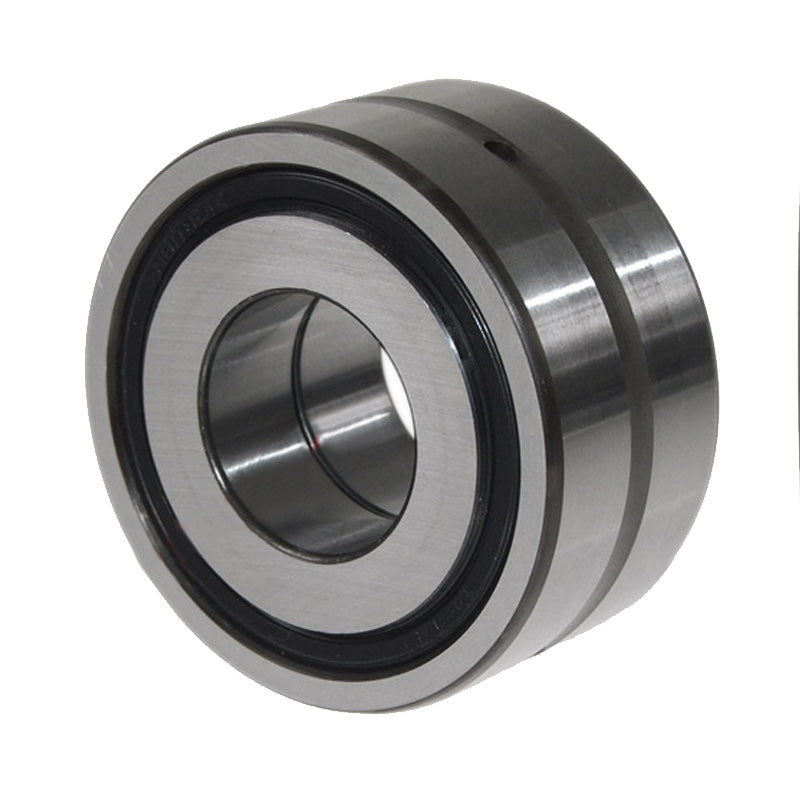

INA ZKLN3062-2RS-2AP Matched Pair Double Direction Axial Angular Contact Ball Bearing 30x62x56mm Allow 7-10 Days
INA ZKLN3062-2RS-2AP Matched Pair Double Direction Axial Angular Contact Ball Bearing 30x62x56mm Allow 7-10 Days
Regular price
CHF 1,042.00
ex VAT
Regular price
Sale price
CHF 1,042.00
ex VAT
In stock
Price Break
4+
CHF 830.19
9+
CHF 783.55
19+
CHF 774.22
29+
CHF 764.90
39+
CHF 755.57
49+
CHF 746.24
59+
CHF 699.60
69+
CHF 690.27
79+
CHF 680.94
89+
CHF 671.62
99+
CHF 652.96
Share this product
Description
Description
|
INA ZKLN Series Angular Contact Bearings: Bearings of series ZKLN are double row axial angular contact ball bearings with an outer ring suitable for mounting in a housing and has integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle. Double row axial angular contact ball bearings of series ZKLN...2RS have two rows of balls with a contact angle of 60 Degrees. The bearings are sealed on both sides with rubber seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. The axial run out tolerance corresponds approximately to P2 in accordance with DIN 620. Benefits: Cost effective solution, re-lubricatable, housed fitting, low down time |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 56mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
